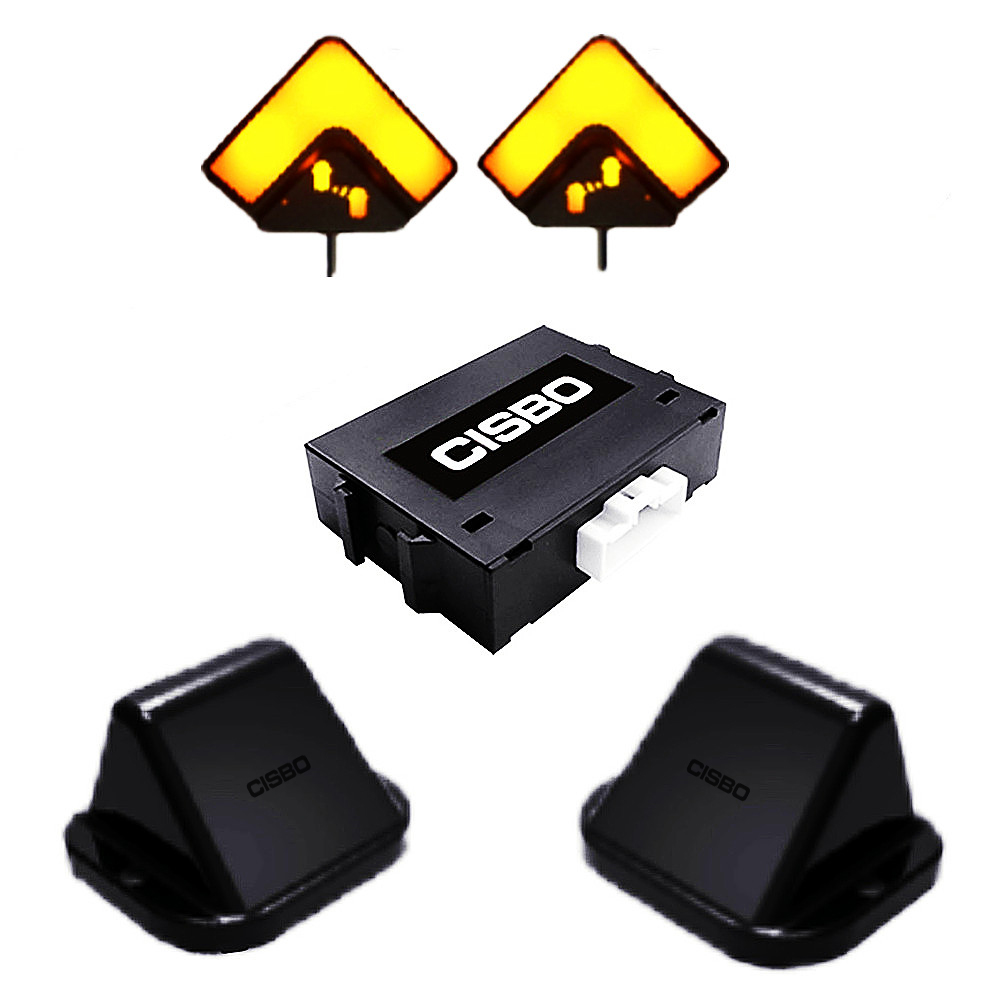

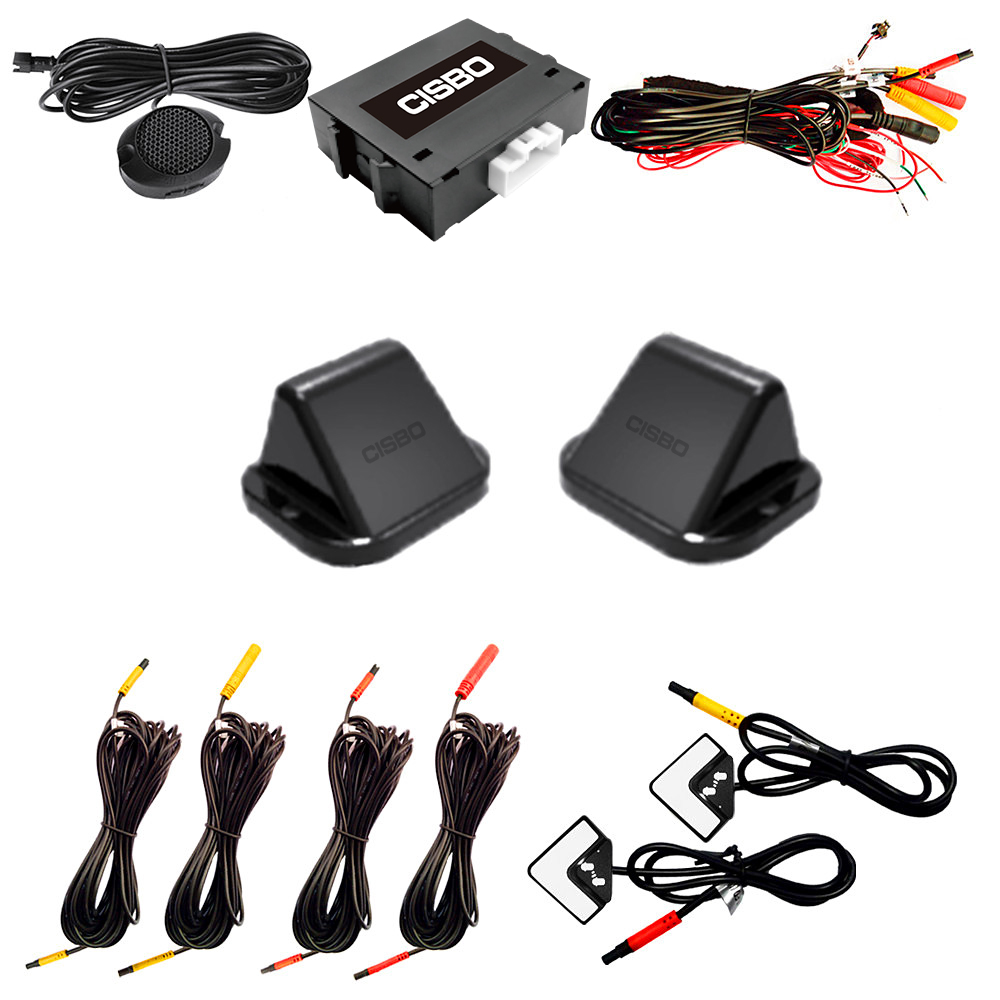

Feature：Truck Blind Spot Detection System with 77Ghz BSD Radar Sensor

Number：C93

Classification：BSD blind spot detection system

Specifications:
1, Operating Voltage Range: 9V -- 36V DC
2, Rated Current:  ≤400mA
3, Detecting Distance: 0.3~20Meter for vehicle and 10 meter for human.
4,Radar Frequency: 79GHz
5, Radar sensor Angle: 120degree
6,Sensor size: 87.5 x 67.5 x 49mm
7.Operating temperature: -40 - 85 °C

Functions:
1. Blind Spot Detection(BSD);
2. Lane Change Assist(LCA);
3. Rear Cross Traffic Alert(RCTA);
4.Difference of Radius between Inner Wheels Alert.;
5.Active Overtaking Alert(AOA);
6. Same Speed Alarm (Blind Spot Keeping).
