Parking Sensor
Products

Product classification

SB381-4


Feature:LED parking sensor,small and exquisite,flimsy

Number:SHIBO00242595

Classification:Buzzer parking sensor


Detailed description of the product:

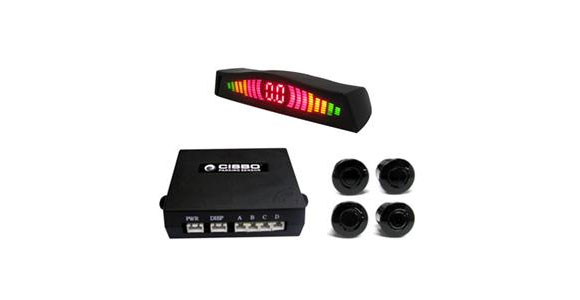

The new 2010 style “CISBO” LED Digits Parking Sensor with ultra-thin design , double CPU , buzzer switcher and colorized screen functions.



Product Characters:



1.New appearance: ultra-thin design and compact shape.

2.Radar detection: Adopt ultrasonic sensors, you can see clearly when reversing.

3.Double CPU: There are Double CPU for systems, one inside monitor and other inside control circuit, working more stable.

4.Digital LED showing obstacle distance .

5.LED display with three colors (Red & yellow&green )

6.Alarm by Bi-Bi sound

7.With 4 sensors.

8.Nearly 50 kinds of color sensors are available.



Technical Parameters:



1. Rated Voltage: 12V DC

2.Power3.6W

3.Working temperature:-20oC ~ +70 oC

4.Detection range  0.3m ~ 2.0mfor rear detection



ALARM SOUND:




Stage

Distance

Area

Sound

Display

1

200-160cm

Safe mode

No sound

2.0-1.6

2

150-100cm

Safe mode

Bi----Bi----Bi

1.5-1.0

3

90-50cm

Alarm mode

Bi—Bi--B

0.9-0.5

4

40-30cm

Alarm mode

Bi-Bi-Bi

0.4-0.3

5

20-0cm

Danger mode

Bi------

0.0
