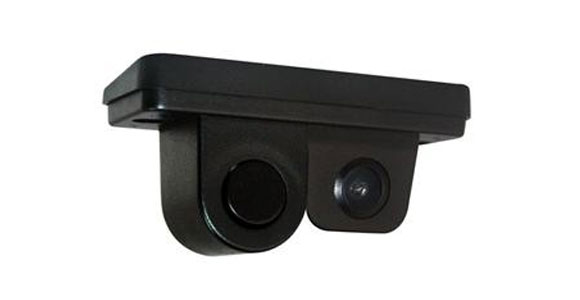

Feature：2 in 1 video parking sensor

Number：SHIBO00383236

Classification：Parking Sensor

Detailed description of the product：

1, This system combine the one sensor and one camera, show the image and distance on the monitor or DVD display,

2, Measure distance between 0.3—2.0M.

3, the color OSD digital and park line show on the screen.

4, High definition camera and wide angel .

5,Alarm by BI-BI.

6,High quality and easy to install

Technical Parameters:

1.Rated Voltage: 12V DC

2.Operating Range: 10.5V～ 16V DC

3.Rated Current:  60mA

4.Detecting Distance: 0.3—2.0M.

5.Ultrasonic Frequency: 40KHz

6.Image sensor:  CMOS

7.Total pixels: 640 x 480

8.Resolution: 480 TV lines

9.Mini illumination: 0.1 lux

10.TV system: PAL/NTSC

11.Angle: 170 degree

12.Video output: 1.0Vpp composite video at 75 ohms

13.Operating temperature: -20 - 70 deg. C

14.Adjustable bracket for better view angle
