Product classification

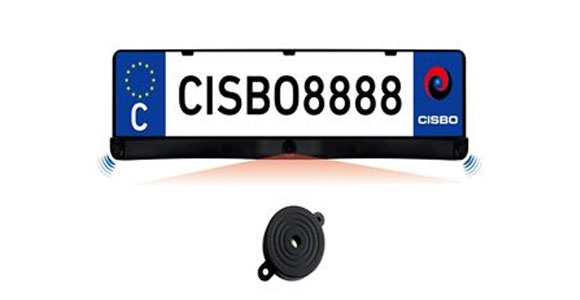

Feature：Video parking sensor 2 in 1 with EU name plate
Number：SHIBO00872357
Classification：Video parking sensor
Detailed description of the product：
Features:
Two ultrasonic sensors installed on left and right of the plate, one color camera installed in the middle of the plate
the sensors aid detecting potential obstacles and enable accurate distance measurement to make reversing safe and convenient
Auto-detecting and auto-alaring mechanism
Detecting range:0.3 to 2M acoustic signal increases in frequency ,when obstacles move closer within 1.5m
Suitable for all kinds of EU cars ,the system could be connected with all car monitor
Easy to install , no damage to car bumper
Specification
1). Voltage : DC 12V
2).Work voltage range： 10.5V~16V DC
3).Rated Current :100mA-200mA
4).Work temperature： -20°C ―― +70°C
5).Image sensor：CMOS
6).Detect range：0.3――2.0 meters
7).Ultrasonic Frequency:40KHz
8).Total pixels:640*480
9).Mini illumination:0.1lux
10).TV system : PAL/NTSC
11).Angle : 120degree
12).Video output : 1.0Vpp composite video at 70 ohms
13).Adjustatbl bracket for better view angle
