PWAS Proximity Warning Alert Anti Collision System C65A
1.Application:Detect and display reverse obstacle distance
2.Function:77GHz millimeter radar, LED display , buzzer alert
3.Radar frequency:77GHz
4.Radar Detection Range: Length 15 meters and width is 3 meters
5.Radar detection angle:H120°
6.Radar:1pcs
7.Power supply:24v
8.Working voltage: DC 9-30V
9.Waterproof:IP 67
10.Warranty:1 year
11.Material:ABS+Metal
12.Operating temperature:-40℃ ~ +85℃
13.Car fitment:universal
- Overview
- Recommended Products
Product Information:
Place of Origin |
China |
Brand Name |
CISBO |
Model Number |
C65A |
Certification |
E-mark,UKCA,CE,RoHS,ISO9001,IATF16949 |
Minimum Order Quantity |
2pcs |
Price |
78USD |
Packaging Details |
1pcs: 23X19X10cm ; 1.5kg |
Delivery Time |
15days |
Payment Terms |
TT Advance payment |
Description:

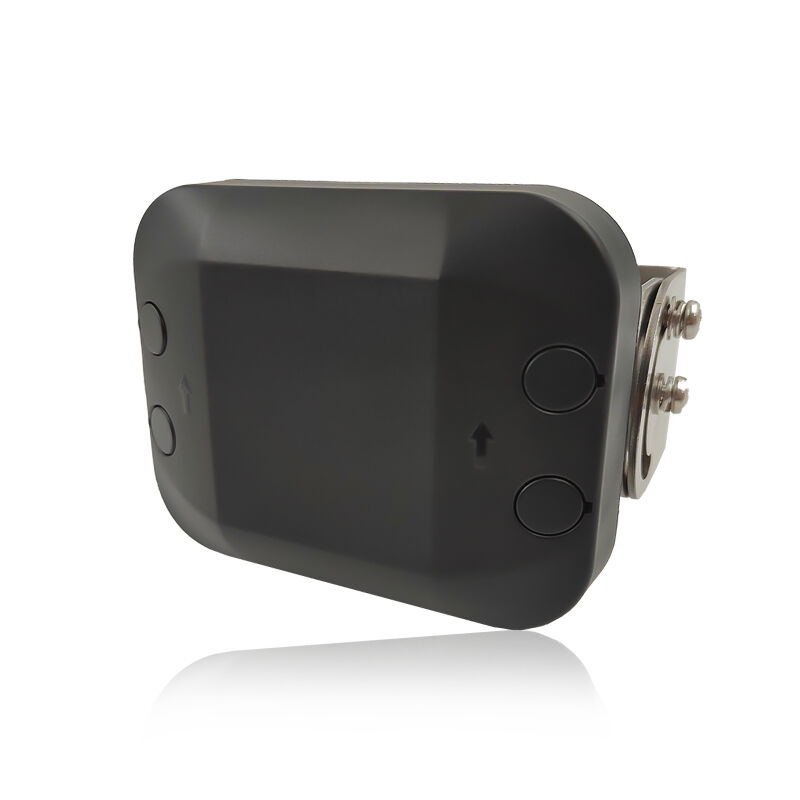

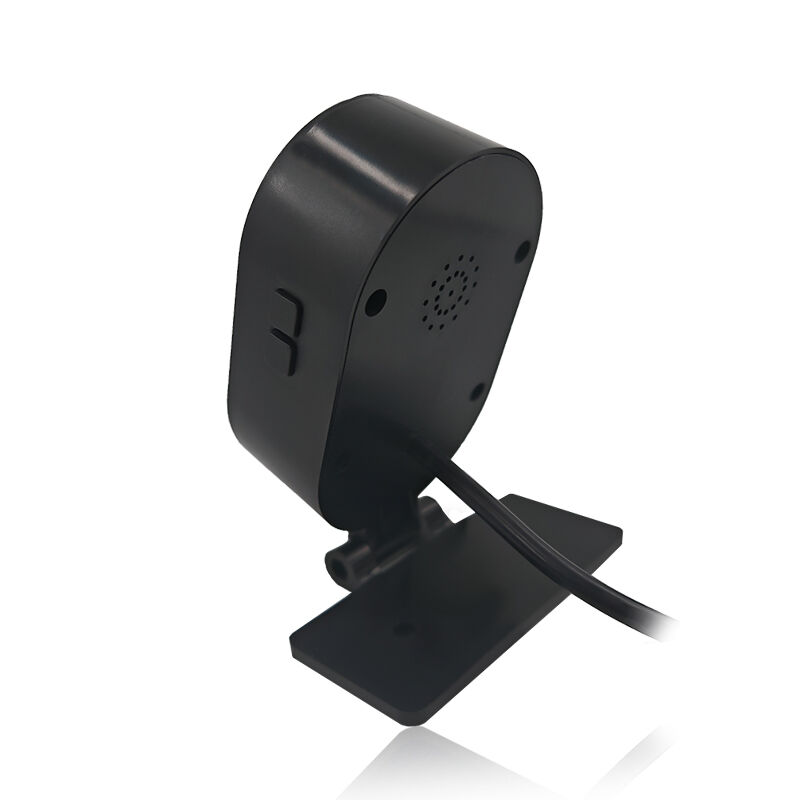

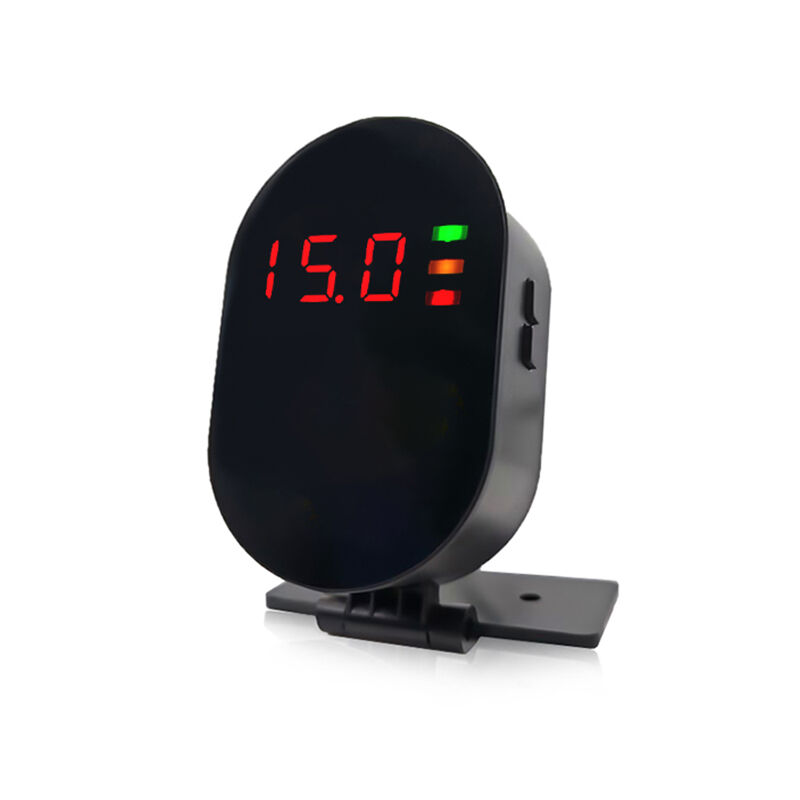

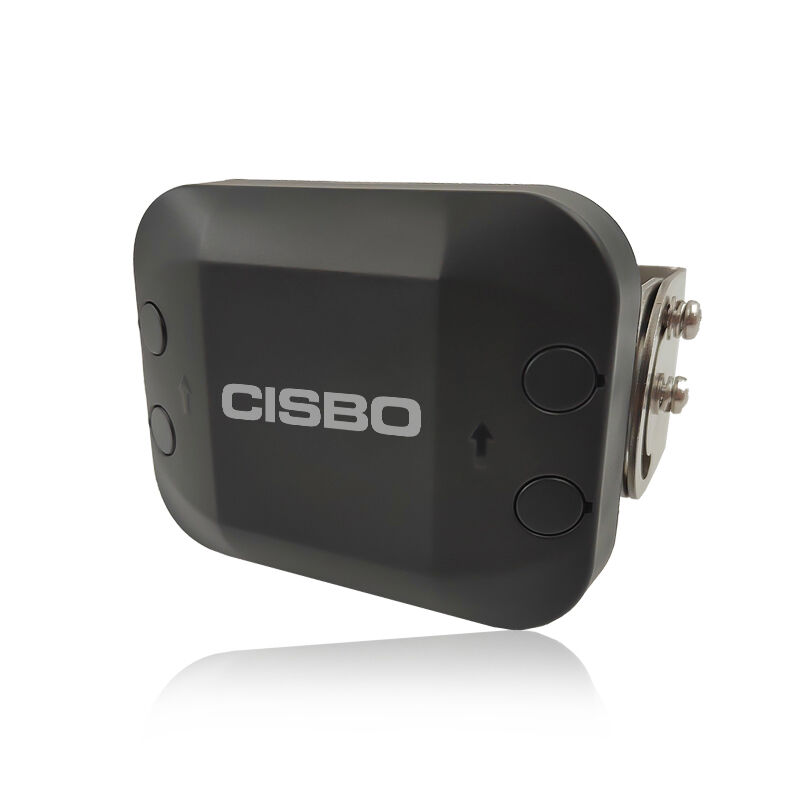

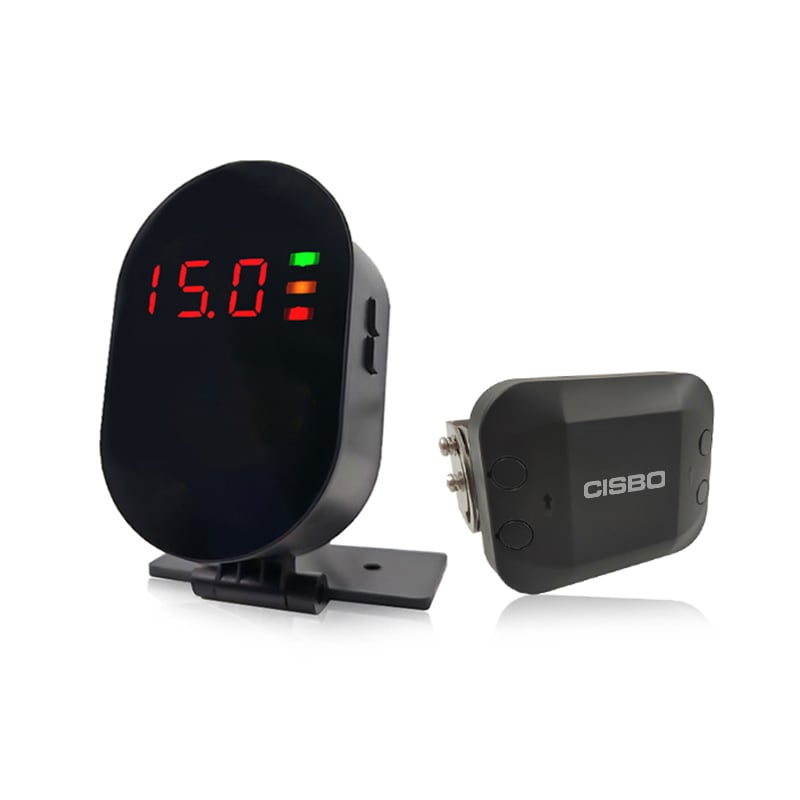

The CISBO Radar Proximity Warning System is equipped with a high-performance 77GHz millimeter-wave sensor and a digital LED display. This PWAS Proximity Warning Alert Anti-Collision System detecting nearby obstacles and showing precise distance data on the LED screen and provides timely situation reminders via the LED display’s built-in buzzer. This buzzer features intelligent functionality: the closer the obstacle, the faster and louder the beeps, allowing the driver to accurately grasp the reversing situation. The radar sensor not only responds to stationary objects such as walls, curbs, or parked cars, but also accurately identifies moving targets, including pedestrians, bicycles, and passing vehicles.
Applications:
CISBO Parking Assist Warning System is a good helper for drivers, which can detect longer distances and wider widths, especially suitable for large trucks, forklifts, special vehicles.
Precise Detection & Clear Feedback: It instantly detects both stationary and moving obstacles behind our vehicle, then shows the exact distance on the LED screen. Plus, the built-in buzzer sounds timely alerts – so we always know what’s behind our vehicle.
Longer Range & Wider Coverage: Designed to detect obstacles at greater distances and across a broader width, it eliminates blind spots that often lead to accidents. Perfect for large vehicles where visibility is limited! Whether we are in tight loading docks, busy worksites, or narrow roads, 77GHz Digital Display Radar Proximity Warning System gives us the confidence to reverse safely.
Specifications:
Product Name |
CISBO 77GHz Radar Sensor Reversing PWAS Proximity Warning Alert Anti Collision System for Truck and Bus |
Function |
77GHz millimeter radar, LED display , buzzer alert |
Radar frequency |
77GHz |
Radar detection range |
Length up to 15 meters and width is 3 meters |
Radar detection angle |
H120° |
Radar |
1pcs |
Power supply |
24V |
Working voltage |
DC 9-30V |
Waterproof |
IP 67 |
Rated current |
≤280mA |
Rated power |
≤3.5W |
Warranty |
1 year |
Material |
ABS+Metal |
Operation temperature |
-40℃ ~ +85℃ |
Car fitment |
universal |
Package |
paper box(23X19X10cm) |
Competitive Advantage:
1.77GHz millimeter-wave radar: 15m detection length, 3m detection width
2.IP67 waterproof for all-day & all-weather use
3.Detect both stationary and moving objects
4.Without control box, Easy Installation
5.Low power consumption, supports long-term power work
All cable sockets have self-locking function to avoid poor contact when the car vibration
